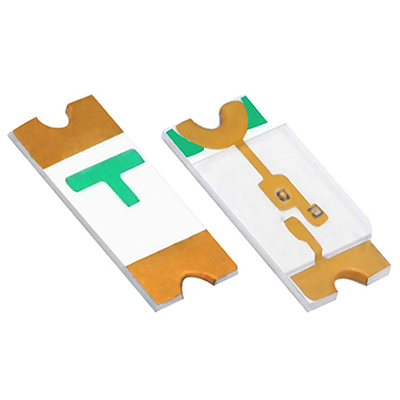

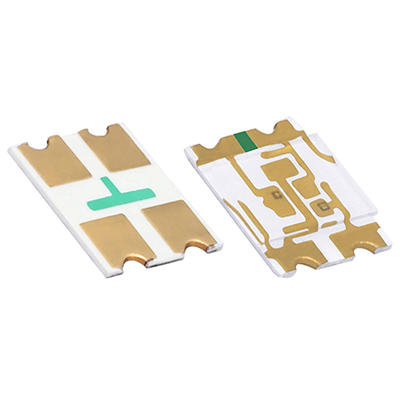

1206-0.35mm、3227-0.35mm
发布时间: 2021-03-25 11:23
1206-0.35mm、3227-0.35mm系列
型号
(WEJ P/N) | 发光颜色
(Emitted Color) | 发光角度
(Viewing Angle) | 正向电流
(Forward Current) | 正向电压
(Forward voltage) | 波段
(Dominant wavelength) | 发光强度
(Luminous intensity) |
| WEJT91BC-C62-ZD035 | 蓝光
(Blue) | 140° | 30mA | 2.8-3.6V @20mA | 465-475nm | 100-165mcd @20mA |
| WEJT91GC-C87-ZD035 | 绿光
(Green) | 140° | 30mA | 2.8-3.6V @20mA | 520-530nm | 400-590mcd @20mA |
| WEJT91HC-831-035 | 黄绿光
(Yellow-Green) | 140° | 30mA | 1.8-2.4V @20mA | 565-576nm | 25-35mcd @20mA |
| WEJT91YC-C43-035 | 黄光
(Yellow) | 140° | 30mA | 1.8-2.4V @20mA | 585-595nm | 100-125mcd @20mA |
| WEJT91OC-C46-035 | 橙光
(Orange) | 140° | 30mA | 1.8-2.4V @20mA | 600-610nm | 100-125mcd @20mA |
| WEJT91RC-C56-035 | 红光
(Red) | 140° | 30mA | 1.8-2.4V @20mA | 620-635nm | 80-125mcd @20mA |
| WEJT91WC-D79-ZD035 | 白光
(White) | 140° | 30mA | 2.8-3.6V @20mA | X:0.252-0.295
Y:0.246-0.318 | 800-960mcd @20mA |
型号
(WEJ P/N): | 发光颜色
(Emitted Color) | 发光角度
(Viewing Angle) | 正向电流
(Forward Current) | 正向电压
(Forward voltage) | 波段
(Dominant wavelength) | 发光强度
(Luminous intensity) |
| WEJT92RBC-R3B4-ZD035 | 红光
(Red) | 140° | 30mA | 1.8-2.4V @20mA | 620-635nm | 80-125mcd @20mA |
蓝光
(Blue) | 2.8-3.6V @20mA | 465-475nm | 100-165mcd @20mA |
| WEJT92RGC-R3G7-ZD035 | 红光
(Red) | 140° | 30mA | 1.8-2.4V @20mA | 620-635nm | 80-125mcd @20mA |
绿光
(Green) | 2.8-3.6V @20mA | 520-530nm | 400-590mcd @20mA |
| WEJT92RHC-R3H2-035 | 红光
(Red) | 140° | 30mA | 1.8-2.4V @20mA | 620-635nm | 80-125mcd @20mA |
黄绿光
(Yellow-Green) | 1.8-2.4V @20mA | 565-576nm | 25-35mcd @20mA |
| WEJT92RYC-R3Y3-035 | 红光
(Red) | 140° | 30mA | 1.8-2.4V @20mA | 620-635nm | 80-125mcd @20mA |
黄光
(Yellow) | 1.8-2.4V @20mA | 585-595nm | 100-125mcd @20mA |
| WEJT92YGC-Y3G7-ZD035 | 黄光
(Yellow) | 140° | 30mA | 1.8-2.4V @20mA | 585-595nm | 100-125mcd @20mA |
绿光
(Green) | 2.8-3.6V @20mA | 520-530nm | 400-590mcd @20mA |
| WEJT92YHC-Y3H2-035 | 黄光
(Yellow) | 140° | 30mA | 1.8-2.4V @20mA | 585-595nm | 100-125mcd @20mA |
黄绿光
(Yellow-Green) | 1.8-2.4V @20mA | 565-576nm | 25-35mcd @20mA |
型号
(WEJ P/N): | 发光颜色
(Emitted Color) | 发光角度
(Viewing Angle) | 正向电流
(Forward Current) | 正向电压
(Forward voltage) | 波段
(Dominant wavelength) | 发光强度
(Luminous intensity) |
| WEJT92RGBC-R3G7B4-2ZD035 | 红光
(Red ) | 140° | 30mA | 1.8-2.4V @20mA | 620-635nm | 80-125mcd @20mA |
绿光
(Green) | 2.8-3.6V @20mA | 520-530nm | 400-590mcd @20mA |
蓝光
(Blue) | 2.8-3.6V @20mA | 465-475nm | 100-165mcd @20mA |
