产品中心
红外对管 IR & PD
    发布时间: 2020-10-13 13:51

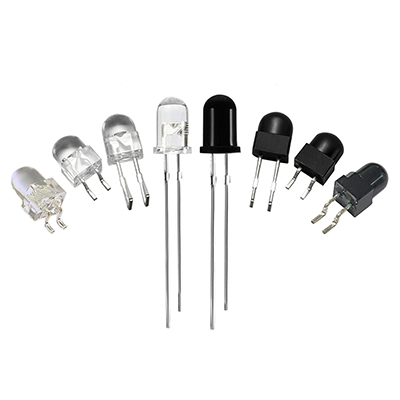

红外对管 IR & PD

型号(Model Number): WEJ5C3JC-T4A-2
产品名称(Product name):
5mm圆头方座850nm红外发射管
正向电流(Forward Current):100mA
正向电压(Forward Voltage):
If=50mA Min:1.1V Typ:1.2V
If=100mA Min:1.2V Typ:1.5V
辐射强度(Radiant Intensity):
If=50mA Min:90mW/Sr Typ:170mW/Sr
If=100mA Min:150mW/Sr Typ:270mW/Sr
峰值波长(Peak Wavelength):
Typ:850nm

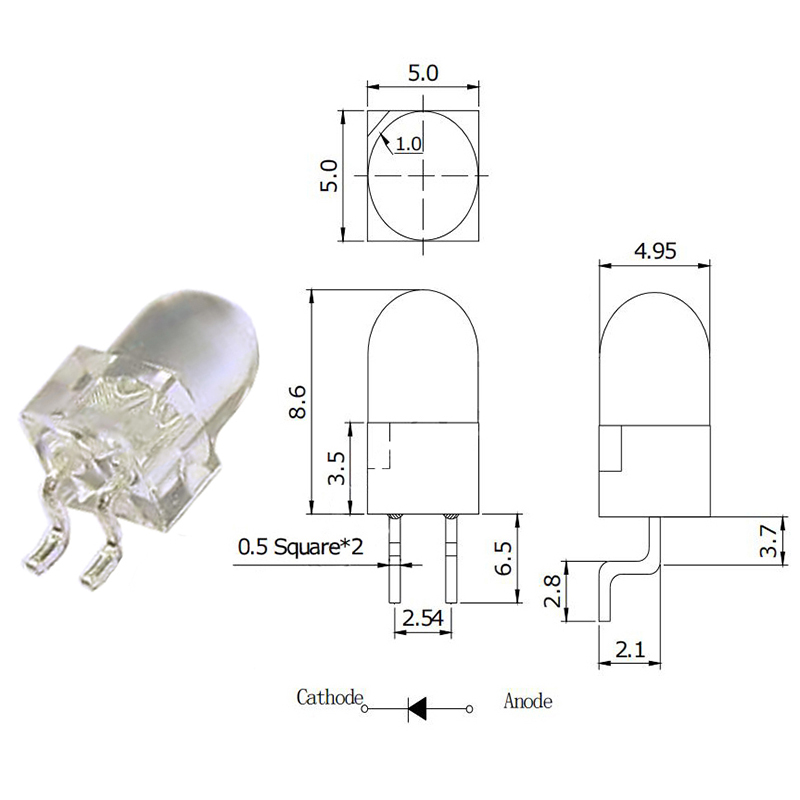

型号(Model Number): WEJ5CAPD-K64-8
产品名称(Product name):
5mm圆头方座850nm红外接收管
波长范围(Range Of Spectral Bandwidth):
Min:700nm Max:1000nm
峰值波长(Wavelength Of Peak Sensitivity):
Typ:850nm
光电流(Reverse Light Current):
Min:25uA Max:45uA
上升/下降时间(Rise Time/Fall Time):
Typ:45/45nS Max:50/50nS

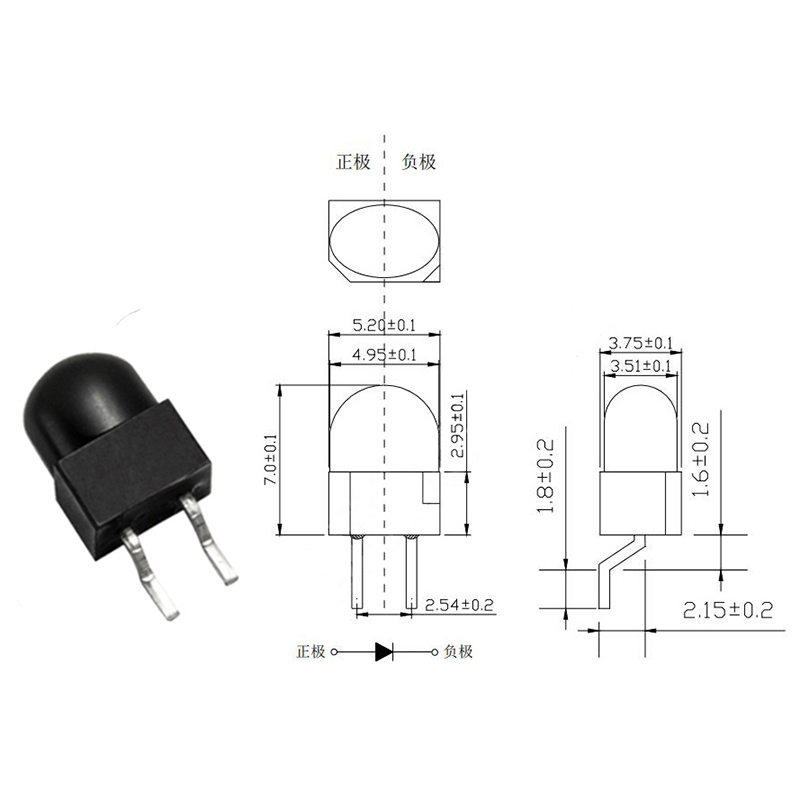

型号(Model Number): WEJ563JC-T4A-DZ
产品名称(Product name):
5mm椭圆方座940nm红外发射管
正向电流(Forward Current):100mA
正向电压(Forward Voltage):
If=50mA Min:1.1V Typ:1.2V
If=100mA Min:1.2V Typ:1.5V
辐射强度(Radiant Intensity):
If=100mA Min:30mW/Sr Typ:35mW/Sr
峰值波长(Peak Wavelength):
Typ:940nm

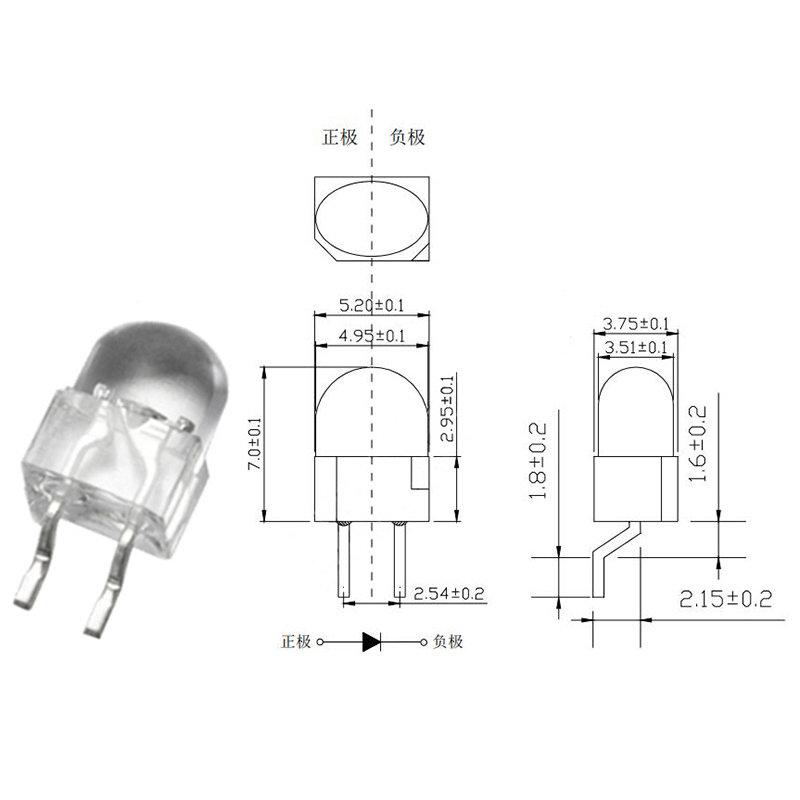

型号(Model Number): WEJ56APD-K60-DZ
产品名称(Product name):
5mm椭圆方座940nm红外接收管
波长范围(Range Of Spectral Bandwidth):
Min:860nm Max:1000nm
峰值波长(Wavelength Of Peak Sensitivity):
Typ:940nm
光电流(Reverse Light Current):
Min:10uA Max:20uA
上升/下降时间(Rise Time/Fall Time):
Typ:45/45nS Max:50/50nS

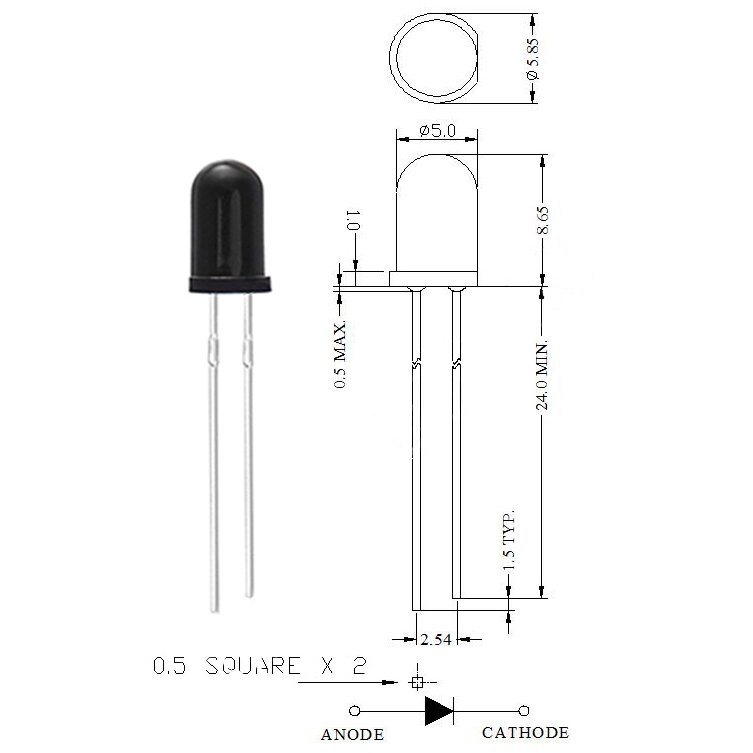

型号(Model Number): WEJ504JC-E0J1
产品名称(Product name):
5mm圆头850nm红外发射管
正向电流(Forward Current): 100mA
正向电压(Forward Voltage):
If=20mA Typ:1.4V Max:1.65V
辐射强度(Radiant Intensity):
If=20mA Min:90mW/Sr Typ:110mW/Sr
峰值波长(Peak Wavelength):
Typ:850nm

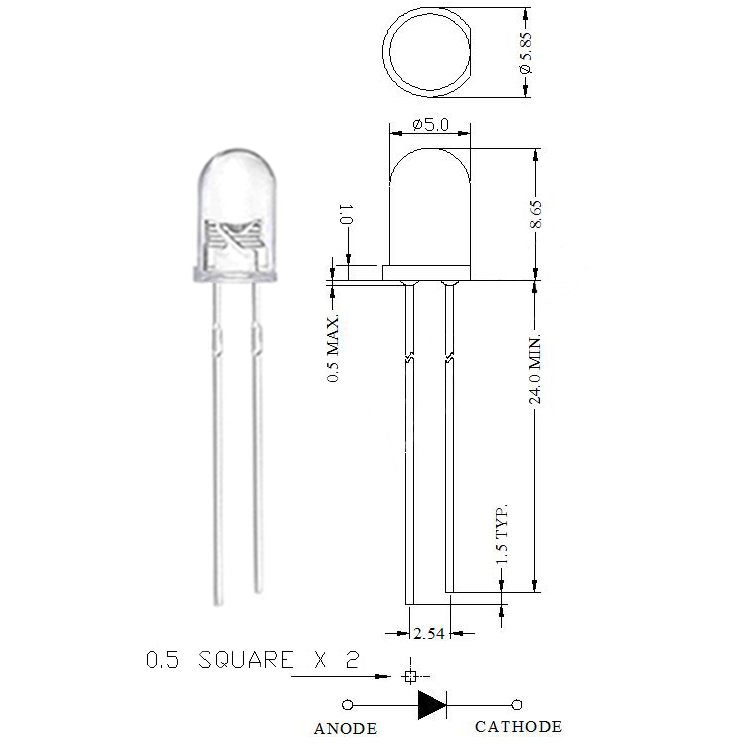

型号(Model Number): WEJ503PD-60J1
产品名称(Product name):
5mm圆头850nm红外接收管
波长范围(Range Of Spectral Bandwidth):
Min:700nm Max:1000nm
峰值波长(Wavelength Of Peak Sensitivity):
Typ:850nm
光电流(Reverse Light Current):
Min:10uA Typ:25uA
上升/下降时间(Rise Time/Fall Time):
Typ:50/50nS

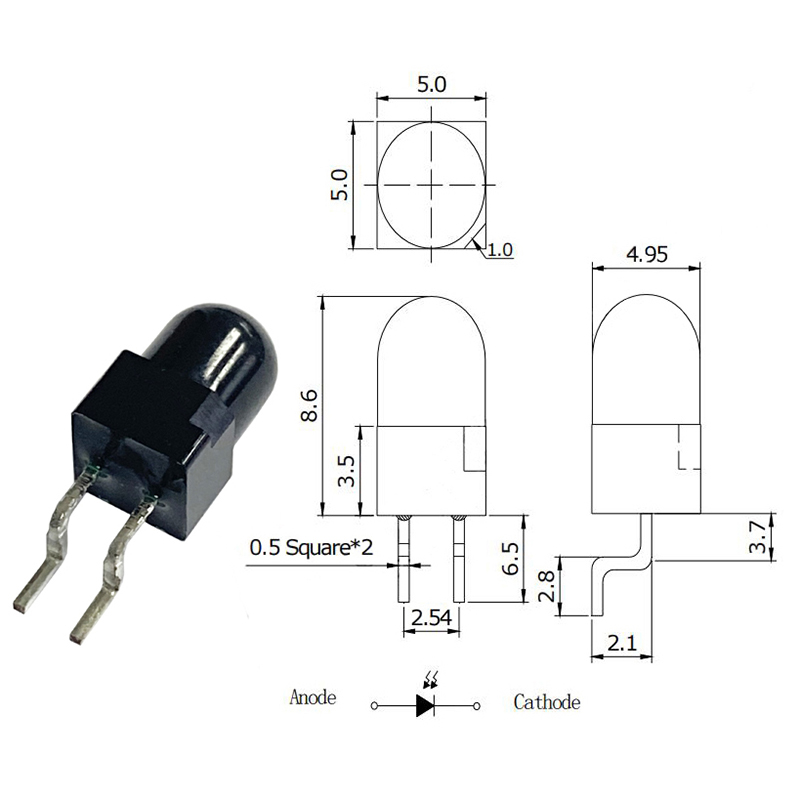

型号(Model Number): WEJ503JC-T2A
产品名称(Product name):
5mm圆头940nm红外发射管
正向电流(Forward Current):100mA
正向电压(Forward Voltage):
If=20mA Typ:1.2V Max:1.4V
If=100mA Min:1.4V Typ:1.8V
辐射强度(Radiant Intensity):
If=20mA Min:20mW/Sr Typ:28mW/Sr
If=100mA Typ:85mW/Sr
峰值波长(Peak Wavelength):
Typ:940nm
型号(Model Number): WEJ503PD-K60
产品名称(Product name):
5mm圆头940nm红外接收管
波长范围(Range Of Spectral Bandwidth):
Min:860nm Max:1000nm
峰值波长(Wavelength Of Peak Sensitivity):
Typ:940nm
光电流(Reverse Light Current):
Min:20uA Typ:30uA
上升/下降时间(Rise Time/Fall Time):
Typ:5/5nS
